Heltec V4.3

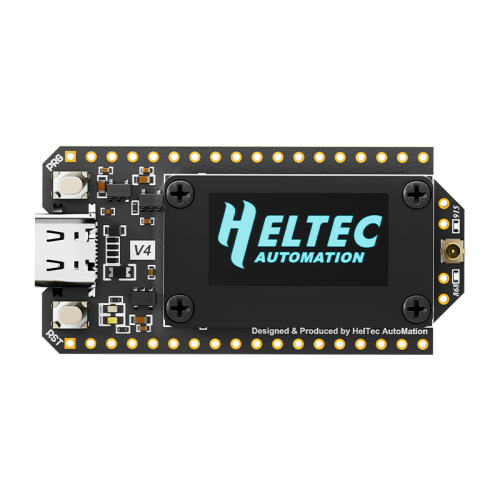

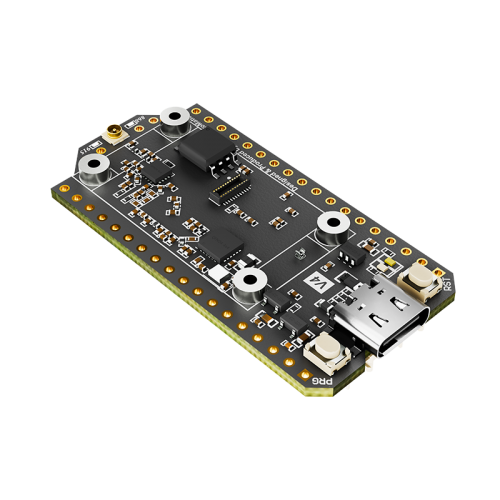

The WiFi LoRa 32 V4, the next gen to the Heltec V3, is a powerful, high-efficiency IoT maker board featuring an ESP32S3 MCU and SX1262 LoRa Node chip; retaining the V3’s size and identical pinout, it integrates performance upgrades including a built-in Wi-Fi/Bluetooth antenna, 28±1dBm LoRa output power, and a protected OLED display; its superior RF and stable system design ensure it’s ready-to-use and highly beginner-friendly, supporting development via Arduino, PlatformIO, ESP-IDF, and MicroPython; making it ideal for long-range wireless open-source projects like Meshtastic, LoRaWAN, and Meshcore.

The V4.3 is a performance upgrade from the original release V4.2, with additional filtering in the receiver to achieve improved noise floor figures.  The ESP-32 MCU provides a low power sleep mode which is utilised in Meshcore firmware, to lower overall power consumption.

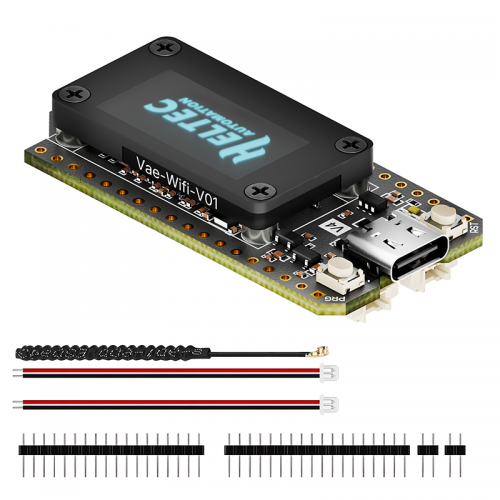

Supply

Item	Quantity
WiFi LoRa 32 (V4)  with Display	x1
LoRa Antenna	x1
1.25×2 Connector (for battery&solar)	x2
2.54*18 Header Pin	x2
2.54*2 Header Pin	x2

Main Features

• Based on ESP32-S3R2 & SX-1262, supports Wi-Fi b/g/n, BLE, and LoRa communication.

• 2MB PSRAM and 16MB external Flash, more suitable for UI and complex system.

• LoRa Transmit Power: High-power version 28 dBm

• PC casing protects the screen and integrates FPC 2.4G antenna.

• Form factor and pin compatibility with WiFi LoRa 32 V3.

• PC casing protects the screen and integrates FPC 2.4G antenna.

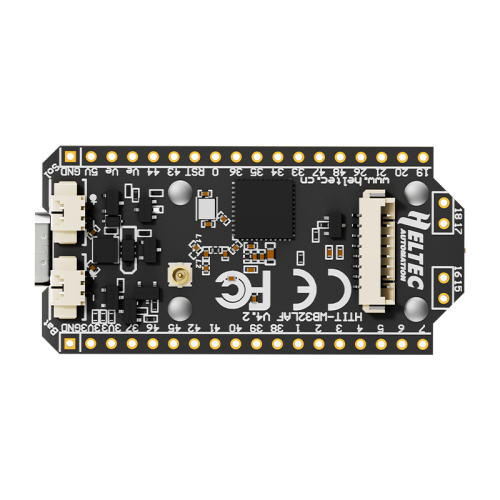

• Added 1.25-2Pin solar panel interface, and 1.25-8Pin GNSS interface.

• Optimized lithium battery management.

• Low power consumption is less than 20μA.
